主要特点MAIN FEATURES
1、 操作简单，机动灵活，适宜在狭窄的范围内工作，可代替人工6-8人。
2、 一机多用，可选装旋挖钻、破碎锤等多种工作装置。
3、挖斗有两种规格，20cm和40cm两种。
4、格栅斗适合根茎植物，例如：土豆、红薯、药材的采集作业。
果园、药材、林业、农庄、大棚、建筑、公路的土方施工，特别适合。
1、Easy to operate, excellent mobility and flexibility, suitable for narrow space work.
This product can replace labors of 6-8 people.

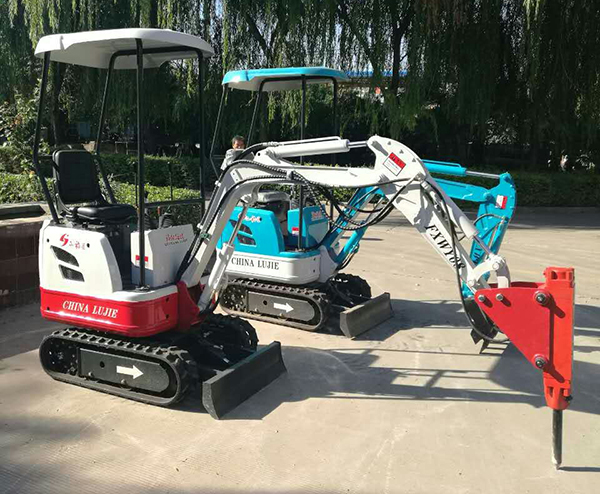

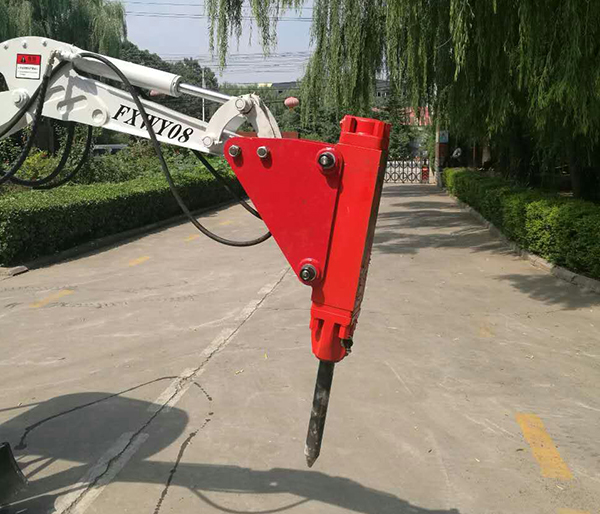

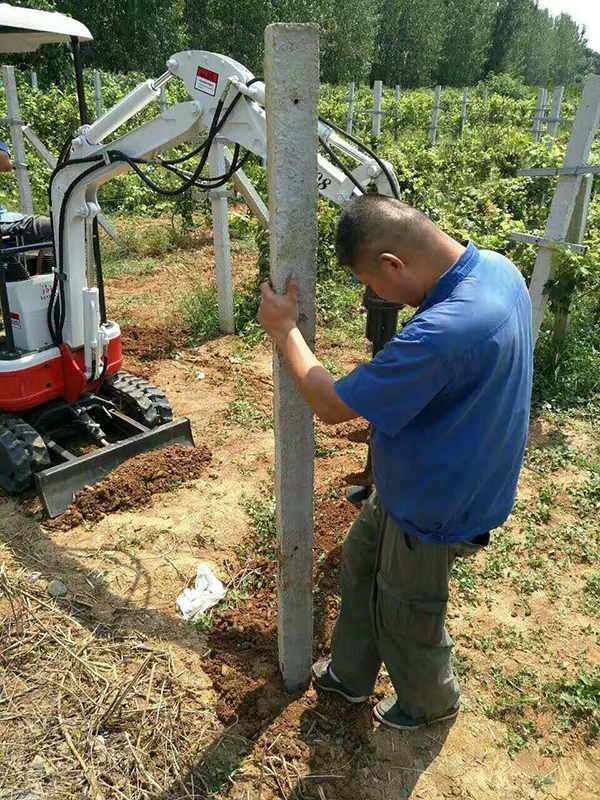

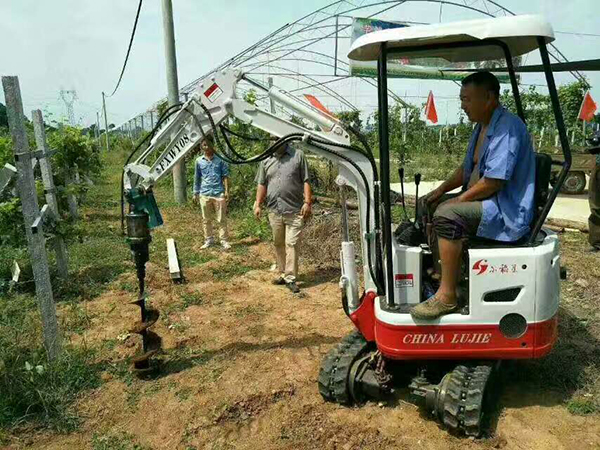

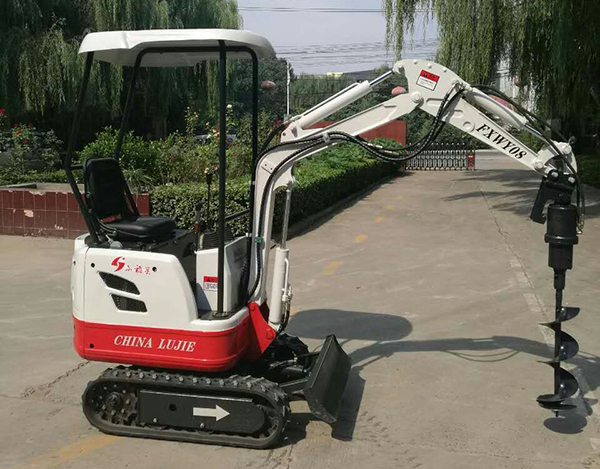

2、All in one design, and it can select auger drill, crushing hammer and other
working equipments.
3、Digging bucket has two specifications, 20cm and 40cm. Suitable for orchard,
forestry, farm, greenhouse, rural foundation and small earthwork.
主要技术参数：MAIN PERFORMANCE PARAMETRES
| 型号 | MODEL | FXWY08 |
| 工作范围 | Working Range | |
| 最大挖掘高度 | Max Digging Height | 2610mm |
| 最大挖掘深度 | Max Digging Depth | 1650mm |
| 最大卸载高度 | Max Dumping Height | 1850mm |
| 尾端回转半径 | Rear Swing Radius | 784mm |
| 最小回转半径 | Min Swing Radius | 1330mm |
| 最大地面挖掘半径 | Max Ground Digging Range | 2850mm |
| 最大垂直挖掘深度 | Max Vertical Digging Depth | 1375mm |
| 性能参数 | Performance Parameter | |
| 整机重量 | Machine Weight | 800kg |
| 发动机型号 | Engine Model | KD192F |
| 发动机功率 | Engine Power | 8.6/3600 |
| 液压系统工作压力 | Hydraulic System | 16 |
| 回转速度 | Swing Speed | 13 |
| 行走速度 | Travel Speed | 0~2 |
| 爬坡能力 | Grade Ability | ≤25 |
| 接地比压 | Ground Pressure | 0.35 |
| 斗容 | Bucket Capacity | 0.025 |
| 外形尺寸 | Dimension | |
| 总长度 | Overall Length | 2770mm |
| 总宽度 | Overall Width | 880mm |
| 总高度 | Overall Height | 1490mm |
| 轮距 | Wheel Tread | 786mm |
| 履带板宽度 | Track Width | 130mm |
